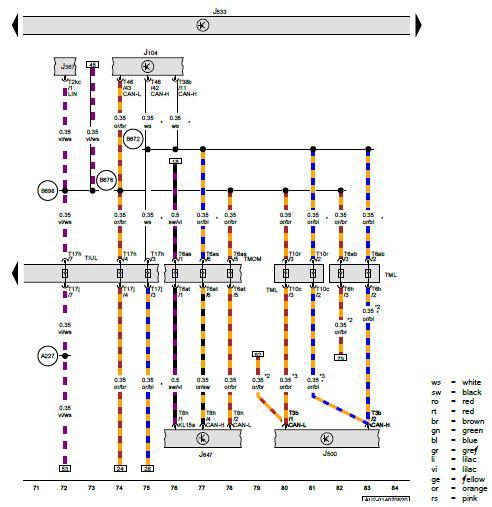

ABS Control Module, Battery Monitoring Control Module, Power Steering Control Module, Data Bus on Board Diagnostic Interface
J104 - ABS Control Module
J367 - Battery Monitoring Control Module
J500 - Power Steering Control Module
J533 - Data Bus on Board Diagnostic Interface
J647 - Differential Locks Control Module
T2kc - 2-Pin Connector
T3b - 3-Pin Connector
T6ab - 6-Pin Connector, Black
T6as - 6-Pin Connector, Gray
T6at - 6-Pin Connector, Gray
T6h - 6-Pin Connector
T8h - 8-Pin Connector
T10c - 10-Pin Connector, Black
T10r - 10-Pin Connector, Black
T17h - 17-Pin Connector, Brown
T17j - 17-Pin Connector, Brown
T38b - 38-Pin Connector
T46 - 46-Pin Connector
TIUL - Coupling Point in Interior, Bottom Left
TML - Coupling Point in Engine/Motor Compartment, Left
TMOM - Coupling Point on Engine, Top Center
A227 - LIN Bus Connection 2 (in Instrument Panel Wiring Harness)
B672 - Suspension/Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B676 - Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
B698 - LIN Bus Connection 3 (in Main Wiring Harness)
* - The Color of the Wires Depends on Vehicle Equipment
*2 - For Vehicles with Gasoline Engine
*3 - For Vehicles with Diesel Engine
