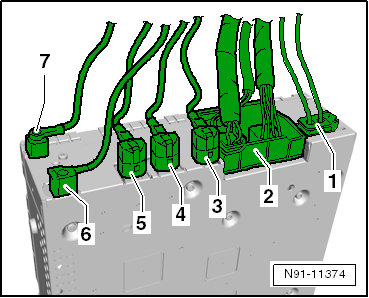

Harness Connectors Of The Information Electronics Control Module 1, Overview
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- MOST bus fiber-optic cable
- Multi-pin connector, contact assignment. Refer to MULTI-PIN CONNECTOR TERMINAL ASSIGNMENT .
- Multi-pin connector for the TV Tuner -R78-
- Multi-pin connector for Front Information Display Control Head -J685-
- Multi-pin connector for the External Audio Source Connection -R199-
- Harness connector for GPS antenna (navigation)
- Harness connector for GSM antenna (telephone)
