Remove the bracket for the Parking Aid Control Module -J446-/ Parallel Parking Assistance Control Module -J791-
WARNING: This page is about a different car, the 2023 Volkswagen Atlas Cross Sport, 2022 Volkswagen Atlas Cross Sport, 2021 Volkswagen Atlas Cross Sport, and 2020 Volkswagen Atlas Cross Sport. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Vehicle Electrical System Control Module -J519-. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, REMOVING AND INSTALLING .
-- If installed: remove the Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-.

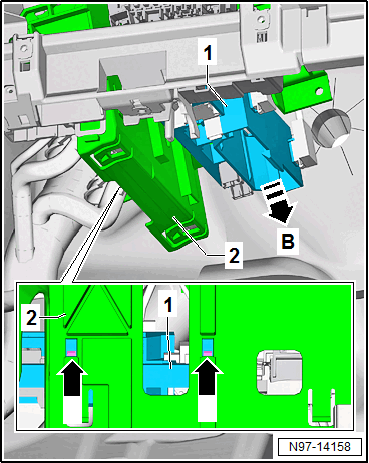

-- Depending on vehicle equipment remove the fuse and relay panel present from the bracket -1-.
-- Release the retainers -arrows- on the bracket for the vehicle electrical system control module -2-.
-- Remove the bracket -1- downward in the -direction of the arrow B- from the bracket for the vehicle electrical system control module -2-.
Installing
Install in reverse order of removal.
