Window Guide, Removing And Installing: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Spray the window guide with soapy water to make it easier to install.

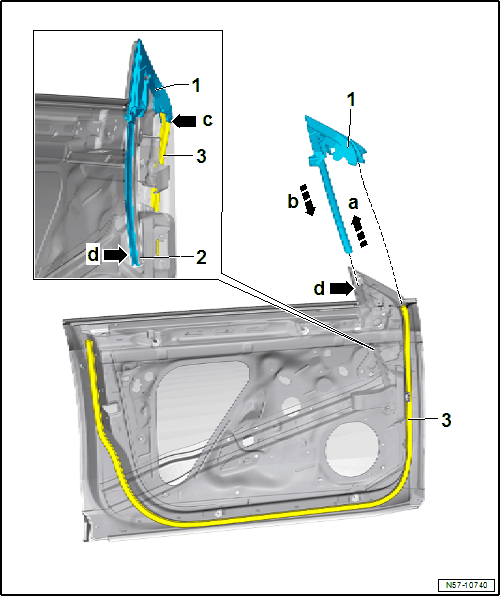

-- Push the window guide -1- into the door mount in direction of -arrow B-.

-- Make sure the window guide -1- is positioned correctly over the seal -3- -arrow c-.

-- Make sure the window guide -1- is positioned correctly in the door mount -2- -d arrow-.

Perform the rest of the installation in the reverse order of removal.
