Windshield Projection Head Up Display Control Module, Removing And Installing: Removing

NOTE:

For reasons of clarity, the steering wheel is not illustrated.

-- Remove the Instrument Cluster -KX2-. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .

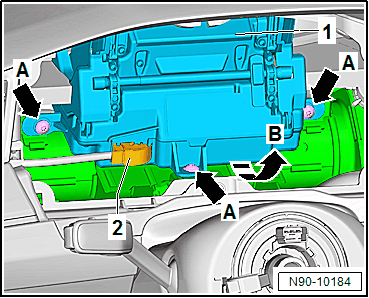

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -A arrows-.

-- Remove the Windshield Projection Head Up Display Control Module -J898- -1- in direction of -arrow B-.
