USB Distributor -R293-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Remove the front center console footwell trim panel on the left side. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .

-- Release and disconnect both connectors on the USB distributor from the left front footwell.

-- Remove the front center console footwell trim panel on the right side. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .

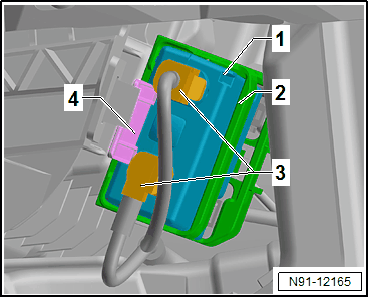

-- Release and disconnect the connectors -3- on the USB distributor -1- from the right front footwell.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the retainer -4- on the bracket -2- for the USB distributor -1-.

-- At the same time, pull out and remove the USB distributor -1- from the bracket -2-.
