Chip Card Reader Control Module -J676-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

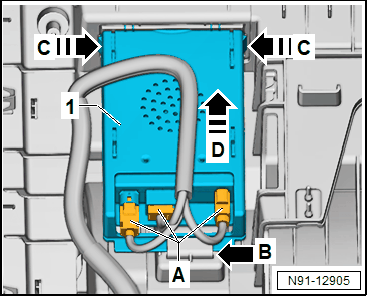

-- Disconnect the connectors -A- on the control module -1-.
-- Release the control module -1- on the hooks in direction of -arrow C- and remove in the direction of the -arrow D-.
