Control Module For Emergency Call Module And Communication Unit -J949-, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

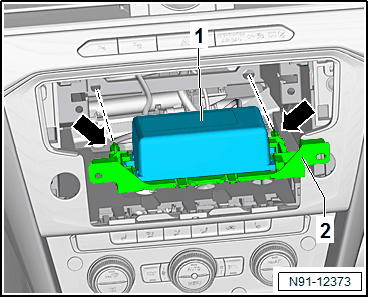

-- The control module -1- must click into place in the bracket -2-.
-- Pay attention that the tabs -arrows- are seated correctly on the bracket -2- in the instrument panel mount.
| Component | Tightening Specification |
|---|---|
| Bracket to instrument panel | 2 Nm |
