Lock Cylinder, Removing And Installing: Installing

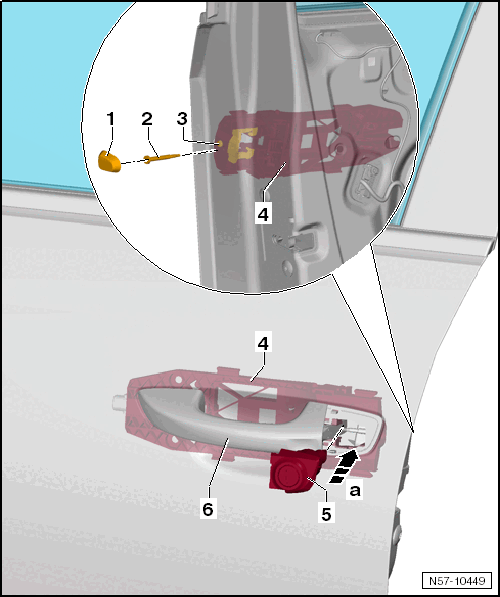

-- Install the lock cylinder housing -5- into the mounting bracket -4- at a right angle -arrow a-.
-- Install the bolts -2- and -3- into the mounting bracket. The locking mechanism pulls at the same time automatically in the position.
The door handle -6- swings automatically on to door.
NOTE:
The lock cylinder housing must be pressed onto the outer door panel while installing.
Perform the rest of the installation in the reverse order of removal.
- Then a function test must be performed with the door opened.
