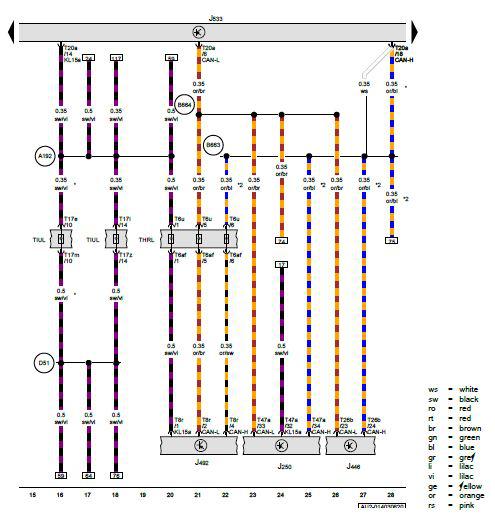

Electronic Damping Control Module, Parking Aid Control Module, All Wheel Drive Control Module, Data Bus on Board Diagnostic Interface
J250 - Electronic Damping Control Module
J446 - Parking Aid Control Module
J492 - All Wheel Drive Control Module
J533 - Data Bus on Board Diagnostic Interface
T6af - 6-Pin Connector, Black
T6u - 6-Pin Connector, Black
T8r - 8-Pin Connector
T17e - 17-Pin Connector, Blue
T17i - 17-Pin Connector
T17m - 17-Pin Connector, Blue
T17z - 17-Pin Connector
T20a - 20-Pin Connector
T26b - 26-Pin Connector
T47a - 47-Pin Connector
THRL - Coupling Point in Luggage Compartment, Left
TIUL - Coupling Point in Interior, Bottom Left
A192 - Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)
B663 - Suspension Sensor CAN Bus High Connection (in Main Wiring Harness)
B664 - Suspension Sensor CAN Bus Low Connection (in Main Wiring Harness)
D51 - Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)
* - Omitted as a Running Change
*2 - The Color of the Wires Depends on Vehicle Equipment
