Component Location Overview - Infotainment System
NOTE:
The component locations for the Sedan are shown. The component locations for the Wagon are identical.

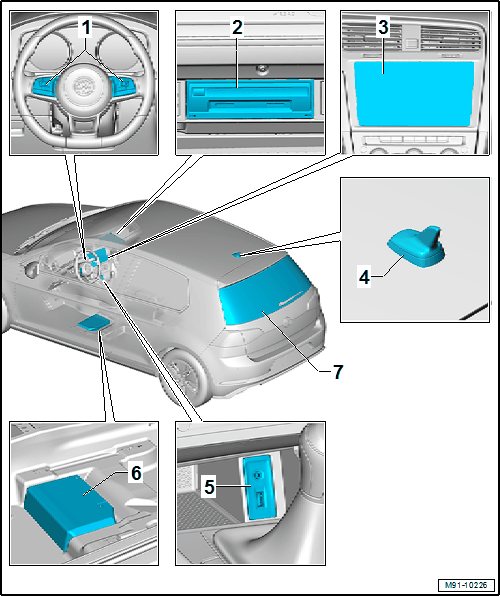

- Multifunction Buttons in Steering Wheel
- Left Multifunction Buttons on Steering Wheel -E440-
- Right Multifunction Buttons on Steering Wheel -E441-
- Removing and installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- Composition Color: in connection with the Front Information Display Control Head -J685-
- Composition Media, Discover Media, Discover Pro: in the glove compartment
- Removing and Installing, Composition Color. Refer to RADIO, REMOVING AND INSTALLING, COMPOSITION COLOR .
- Removing and Installing, Composition Media, Discover Media or Discover Pro. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Composition Color: in connection with the Information Electronics Control Module 1 -J794-
- Composition Media, Discover Media, Discover Pro: single display
- Removing and Installing, Composition Color. Refer to RADIO, REMOVING AND INSTALLING, COMPOSITION COLOR .
- Removing and Installing, Composition Media, Discover Media or Discover Pro. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Replace the Front Information Display Control Head -J685- knob. Refer to Front Information Display Control Head -J685- KNOB, REPLACING .
- Roof Antenna -RX5-
- Removing and installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- External Multimedia Device Connection
- In the front center console storage compartment
- Removing and installing. Refer to CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES, REMOVING AND INSTALLING .
- Digital Sound System Control Module -J525-
- Under the left front seat
- Removing and installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
- Rear Window Antenna
