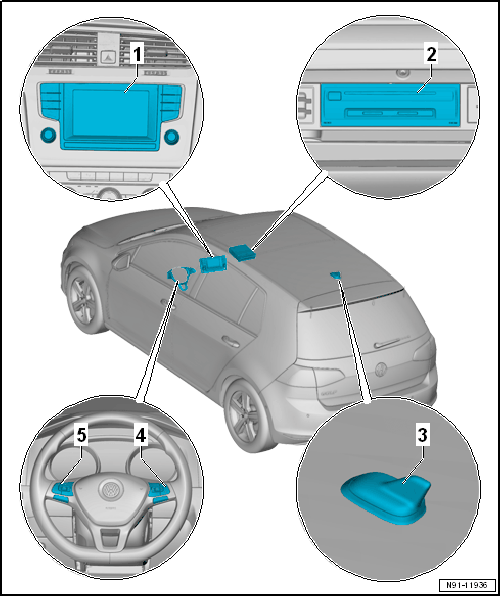

Component Location Overview - Navigation System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Information Display Control Head -J685-
   • Inside the center of the instrument panel
   • Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
2. Information Electronics Control Module 1 -J794-
   • In the glove compartment
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
3. GPS Antenna -R50-
   • In the Roof Antenna -RX5-
   • Removing and installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
4. Right Multifunction Buttons on Steering Wheel -E441-
   • Removing and installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
5. Left Multifunction Buttons on Steering Wheel -E440-
   • Removing and installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
