Overview - Horn

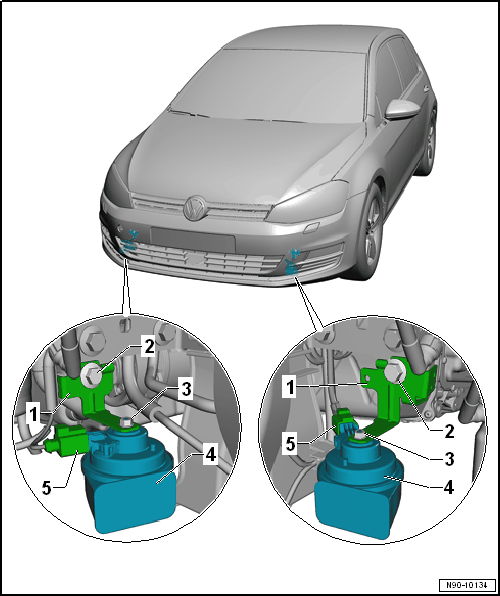

Fig 1: Exploded View Of Horn

GWWN90-10134

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket
- For the horn
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
Bolt
- 18 Nm
Nut
- 9 Nm
Horn
- High Tone Horn -H2- is installed on the left
- Low Tone Horn -H7- in installed on the right
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
Connector
