Component Location Overview - Central Locking

The overview shows an LHD vehicle as an example.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

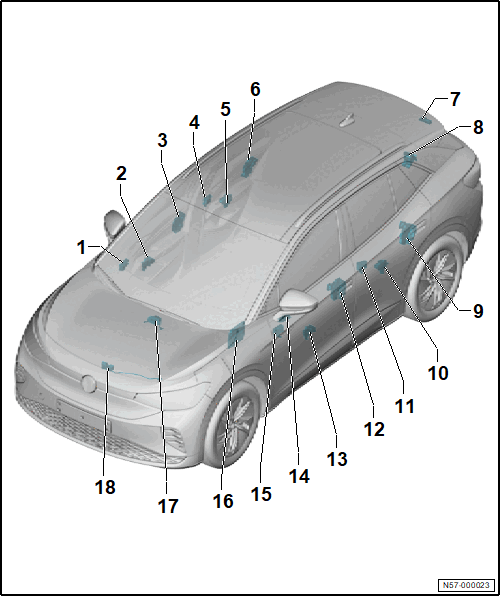

1. Front Passenger Door Control Module -J387-
   • Refer to DRIVER AND FRONT PASSENGER DOOR CONTROL MODULE J386/J387, REMOVING AND INSTALLING  .
2. Front Passenger Window Regulator Motor -V148-
   • Refer to Overview - Carrier for Door Components
   • Refer to DRIVER/FRONT PASSENGER WINDOW REGULATOR MOTOR V147/V148, REMOVING AND INSTALLING  .
3. Front Passenger Door Lock Unit -VX22-
   • with Front Passenger Door Contact Switch - F3-
   • With Front Passenger Central Locking Lock Unit - F221-
   • With Front Passenger Door Central Locking -Safe- Function Actuator -F244-
   • With Front Passenger Door Central Locking System Motor -V57-
   • With Front Passenger Central Locking -Safe- Motor -V162-
   • Refer to Overview - Door Handle and Door Lock  .
   • Refer to DRIVER/FRONT PASSENGER DOOR LOCK UNIT VX21/VX22, REMOVING AND INSTALLING  .
4. Passenger Side Rear Door Control Module -J927-
   • Refer to LEFT AND RIGHT REAR DOOR CONTROL MODULE J926/J927, REMOVING AND INSTALLING  .
5. Passenger Side Rear Window Regulator Motor -V472-
   • Refer to Overview - Carrier for Door Components
   • Refer to DRIVER/PASSENGER SIDE REAR WINDOW REGULATOR MOTOR V471/V472, REMOVING AND INSTALLING .
6. Passenger Side Rear Door Lock Unit -VX84-
   • with Passenger Side Rear Door Contact Switch -F506-
   • With Passenger Side Rear Central Locking Lock Unit -F436-
   • With Passenger Side Rear Central Locking System Actuator -F510-
   • With Passenger Side Rear Central Locking System Motor -V540-
   • With Passenger Side Rear Door Central Locking -Safe- Motor -V538-
   • Refer to Overview - Door Handle and Door Lock .
   • Refer to DRIVER/PASSENGER SIDE REAR DOOR LOCK UNIT VX83/VX84, REMOVING AND INSTALLING .
7. Rear Lid Handle
   • With Release Button in Rear Lid Handle -E234-
   • Depending on the equipment/version with Rearview Camera -R189- or Rear Peripheral Camera -R246-
   • Refer to Overview - Rear Lid .
   • Refer to Rear Lid Handle, Removing and Installing .
8. Rear Lid Lock Unit -VX25-
   • Refer to Overview - Rear Lid .
   • Refer to OVERVIEW - ELECTRIC REAR LID RELEASE .
9. Driver Side Rear Door Lock Unit -VX83-
   • with Driver Side Rear Door Contact Switch -F505-
   • With Driver Side Rear Central Locking Lock Unit - F435-
   • With Driver Side Rear Central Locking System Actuator -F509-
   • With Driver Side Rear Central Locking System Motor -V539-
   • With Driver Side Rear Door Central Locking -Safe- Motor -V537-
   • Refer to Overview - Door Handle and Door Lock .
   • Refer to DRIVER/PASSENGER SIDE REAR DOOR LOCK UNIT VX83/VX84, REMOVING AND INSTALLING .
10. Driver Side Rear Window Regulator Motor -V471-
    • Refer to Overview - Carrier for Door Components
    • Refer to DRIVER/PASSENGER SIDE REAR WINDOW REGULATOR MOTOR V471/V472, REMOVING AND INSTALLING .
11. Driver Side Rear Door Control Module -J926-
    • Refer to LEFT AND RIGHT REAR DOOR CONTROL MODULE J926/J927, REMOVING AND INSTALLING  .
12. Driver Door Lock Unit -VX21-
    • with Driver Door Contact Switch - F2-
    • With Driver Central Locking Lock Unit -F220-
    • With Driver Lock Cylinder Contact Switch -F241-
    • With Driver Door Central Locking -Safe- Function Actuator -F243-
    • With Driver Door Central Locking System Motor -V56-
    • With Driver Door Central Locking -Safe- Motor - V161-. Refer to OVERVIEW - DOOR HANDLE AND DOOR LOCK .
    • Refer to DRIVER/FRONT PASSENGER DOOR LOCK UNIT VX21/VX22, REMOVING AND INSTALLING  .
13. Driver Window Regulator Motor -V147-
    • Refer to Overview - Carrier for Door Components
    • Refer to DRIVER/FRONT PASSENGER WINDOW REGULATOR MOTOR V147/V148, REMOVING AND INSTALLING  .
14. Power Window Control Head in Driver Door -EX36-
    • Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
    • Refer to POWER WINDOW CONTROL HEAD IN DRIVER DOOR -EX36-, REMOVING AND INSTALLING
15. Driver Door Control Module -J386-
    • Refer to DRIVER AND FRONT PASSENGER DOOR CONTROL MODULE J386/J387, REMOVING AND INSTALLING  .
16. Vehicle Electrical System Control Module -J519-
    • Refer to OVERVIEW - VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519- .
    • Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
17. Alarm Horn -H12-
    • Refer to OVERVIEW - INTERIOR MONITORING .
    • Refer to ALARM HORN H12, REMOVING AND INSTALLING .
18. Hood Latch
    • With Engine Hood Contact Switch -F266-
    • Refer to Overview - Hood .
    • Refer to Hood Latch, Removing and Installing .
