Rear Brakes

Drum Brakes

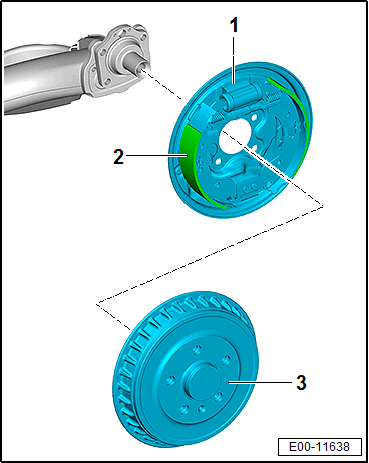

Fig 1: Drum Brakes

GWWE00-11638

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1KB
1	Wheel brake cylinder	diameter in mm	23.8
2	Brake pad, width	mm	52
Brake pad, thickness		mm	4.55
Brake pad, minimum thickness		mm	1.0
3	Brake drum	diameter in mm	279.8
Brake drum, wear limit		diameter in mm	280.8
