Emergency Call Module Speaker R335, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the speaker trim. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .

-- Remove the bolts -2-.

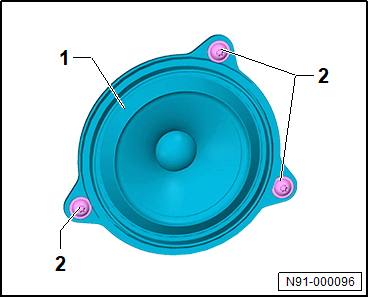

GWWN91-000096Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the speaker -1-.

-- Disconnect the connector.
