Roof Antenna -RX5-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Free up the Internet Access Control Module -J666-. Refer to INTERNET ACCESS CONTROL MODULE J666, REMOVING AND INSTALLING .

-- Disconnect the connectors -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the bolt -5-.

-- Loosen the Internet Access Control Module -J666- -1- and put aside with the wires -4- and -6- still attached.

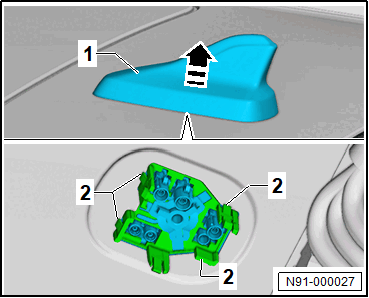

-- Release the hook -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the roof antenna -1- in the -direction of the arrow-.
