Driver Assistance Systems Front Camera -R242-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.
-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.
-- Remove the front camera cover. Refer to OVERVIEW - INTERIOR REARVIEW MIRROR .

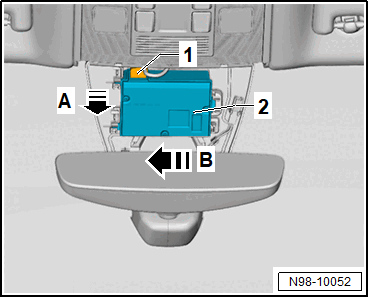

-- Unclip the front camera -2- in -direction of the arrow A- from the clamps.
-- Remove the front camera -2- from the retainer in -direction of the arrow B-.
-- Disconnect the connector -1-.
