Parking Aid / Parallel Parking Assistance Control Module, Removing And Installing, LHD: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the footwell cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

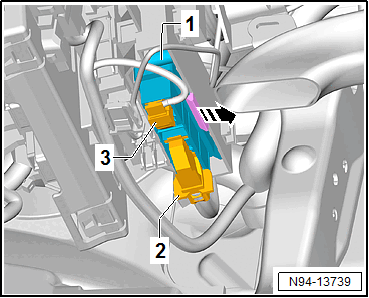

-- Release and disconnect the connectors -2- and -3-.
-- Release the retaining tab in the -direction of the arrow-.
-- Remove the control module -1- downward out of the bracket.
