Peripheral Camera System, Calibrating
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- The vehicle must be on a level surface.
CAUTION:
The vehicle in the illustration is only a basic outline.

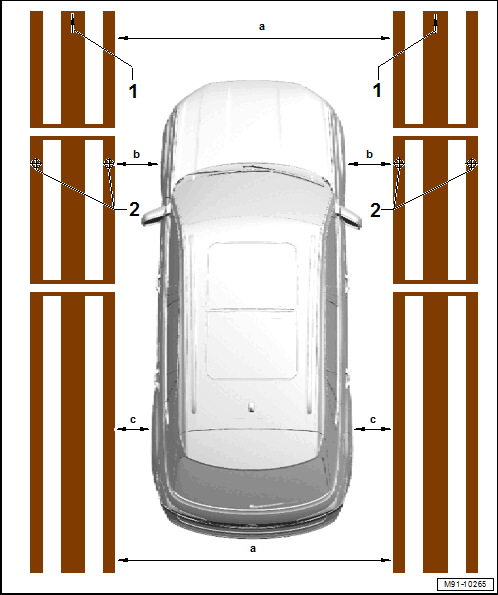

-- Roll out the Calibration System:VAS 721 001 at the left and right near the vehicle.
- The arrows -1- on the calibration patterns point in the vehicle direction of travel.
-- Install the rear and front clamping strip on the calibration patterns of the Calibration System:VAS 721 001 .
-- Align the crosshairs -2- to the front axle of the vehicle (center front wheel).
-- Align both calibration patterns parallel. The vehicle must be located in the center between both calibration patterns.
Pay attention to the following measurement requirements:
- Dimension -a- 2000 to 2500 mm (78.74 to 98.43 in.) ± 5 mm (0.20 in.), front and rear the same
- Dimension -b- (distance from front wheel contact surface to the calibration pattern) must be even on both sides.
- Dimension -c- (distance from rear wheel contact surface to the calibration pattern) must be even on both sides.
-- Set-up the requirement for the vehicle.
-- Connect the Vehicle Diagnostic Tester.
-- Perform the calibration using the Vehicle Diagnostic Tester.
