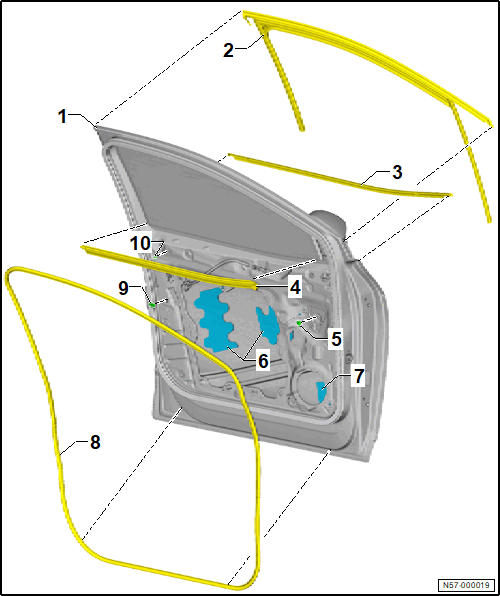

Overview - Door Components

The overview shows the left side of the vehicle as an example

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Door
   • Refer to Door, Removing and Installing  .
   • Refer to Door, Adjusting  .
2. Window Guide
   • Refer to Window Guide, Removing and Installing  .
3. Outer Window Shaft Strip
   • Refer to Outer Window Shaft Strip, Removing and Installing  .
4. Inner Window Shaft Strip
   • Refer to Inner Window Shaft Strip, Removing and Installing  .
5. Plug
6. Insulation
   • Self-adhesive
7. Insulation
   • Self-adhesive
8. Outer Door Seal
   • Replace after removing
   • Refer to Outer Door Seal, Removing and Installing  .
9. Plug
10. Plug
