Front Motor, Installing
Special tools and workshop equipment required
- Lifting Device (ID.4): VAS 501 021
- Shop Crane: VAS 6100
The Three-Phase Current Drive 2 -VX97- with the Electric Drive Power and Control Electronics 2 -JX4- will be called motor in the information that follows.
Installing

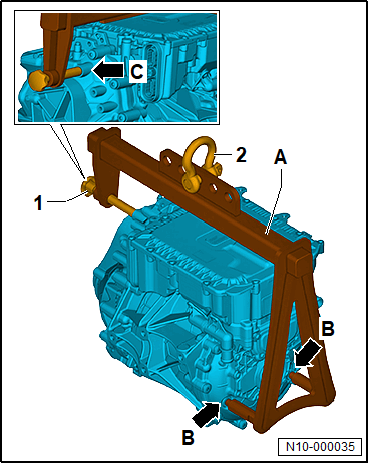

-- Insert the bracket -A- into the holes -arrows B-.
-- Install the bolt -1- all the way in the hole -arrow C- hand-tight.
-- Secure the shackle -2- in the center hole.
-- Engage the Shop Crane: VAS 6100 in the shackle -2-.

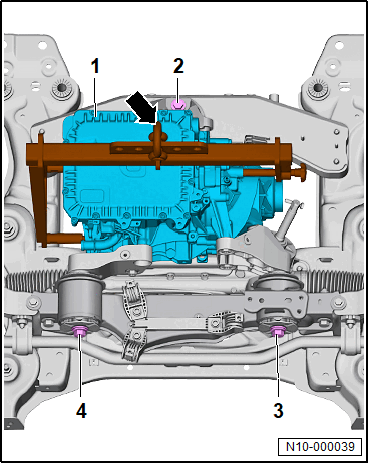

-- Position the motor -1- with the workshop crane on the subframe in the installation position.
-- Align the motor support and transmission mount and install the bolts -3- and -4- all the way.
-- Tighten the bolt -2-.
-- Tighten the bolts -3- and -4-.
-- Remove the Lifting Device (ID.4): VAS 501 021 -arrow-.
Further installation is performed in reverse order of removal, while noting the following:
-- Install the subframe with the motor. Refer to SUBFRAME WITH MOTOR, REMOVING AND INSTALLING .
Tightening Specifications
- Refer to Overview - Front Motor .
