Overview - Assembly Mounts

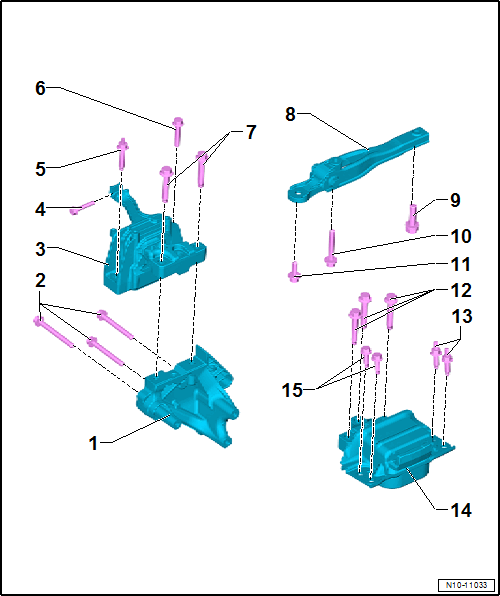

GWWN10-11033Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Engine Support
  2. Bolt
  3. Engine Mount
  4. Bolt
  5. Bolt
  6. Bolt
  7. Bolt
  8. Pendulum Support
  9. Bolt
  10. Bolt
  11. Bolt
  12. Bolt
    • 60 Nm +90°
    • Replace after removing
    • In the single and double bolt versions
  13. Bolt
    • 60 Nm +90°
    • Replace after removing
  14. Transmission Mount
  15. Bolt
    • 50 Nm +90°
    • Replace after removing
