Volkswagen
›
2021
›
Jetta GLI Autobahn, Standard Trans
›
Repair and Diagnosis (Single Page)
›
Engine Performance
›
Wiring Diagrams
›
OEM Wiring Diagram [DKFA]
›

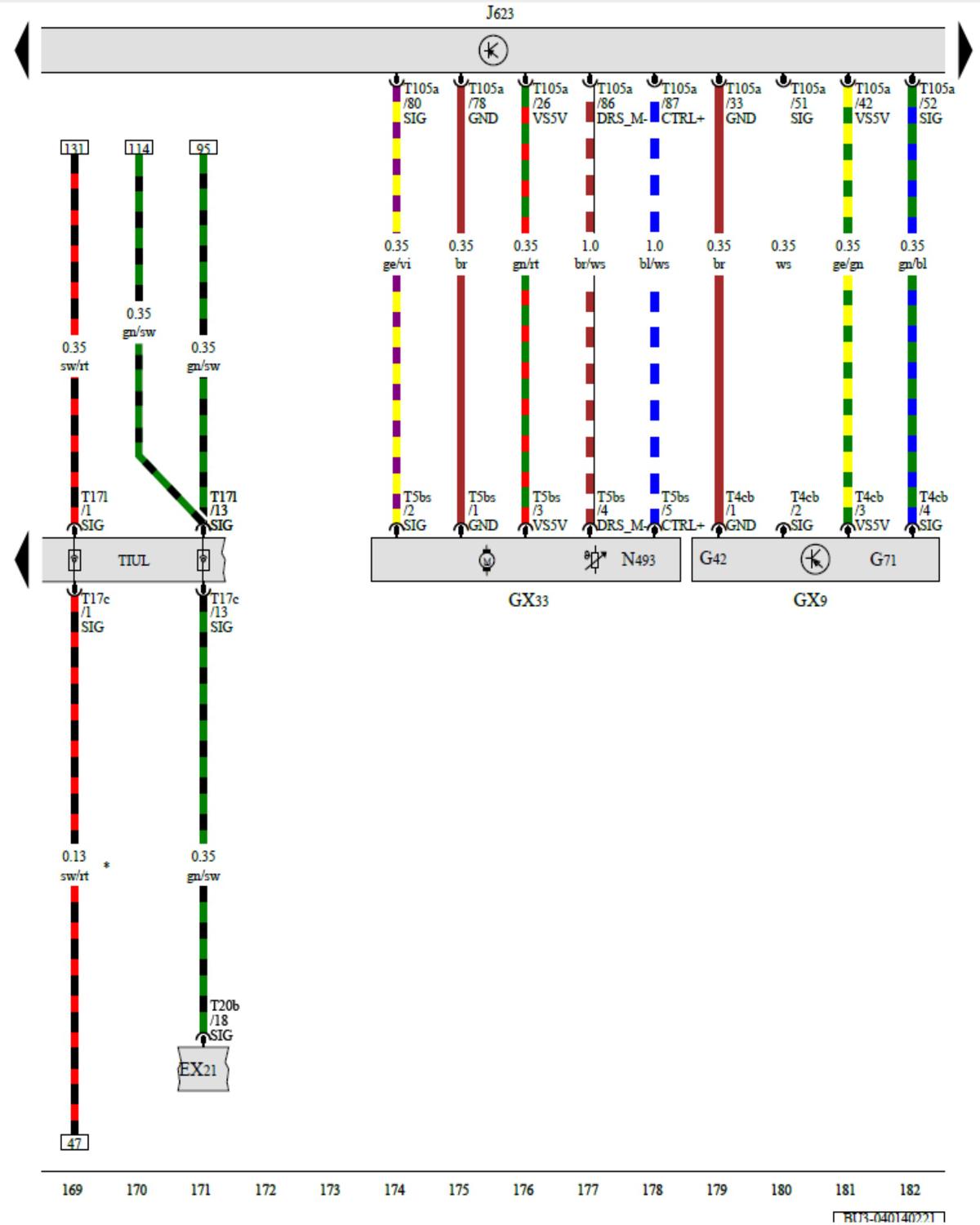

Wiring Diagram
›
Engine Temperature Control Module, Manifold Absolute Pressure Sensor, Engine/Motor Control Module, Engine Temperature Control Actuator
›
Notes
Engine Temperature Control Module, Manifold Absolute Pressure Sensor, Engine/Motor Control Module, Engine Temperature Control Actuator: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
