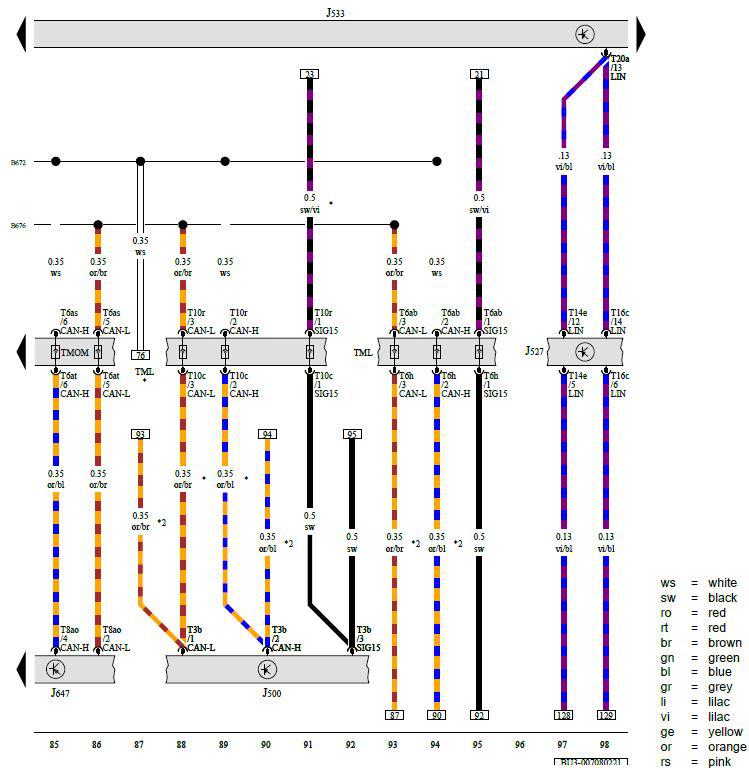

Power Steering Control Module, Steering Column Electronics Control Module, Data Bus on Board Diagnostic Interface, Differential Locks Control Module
J500 - Power Steering Control Module
J527 - Steering Column Electronics Control Module
J533 - Data Bus on Board Diagnostic Interface
J647 - Differential Locks Control Module
T3b - 3-Pin Connector
T6ab - 6-Pin Connector, Black
T6as - 6-Pin Connector, Gray
T6at - 6-Pin Connector, Gray
T6h - 6-Pin Connector
T8ao - 8-Pin Connector
T10c - 10-Pin Connector, Black
T10r - 10-Pin Connector, Black
T14e - 14-Pin Connector
T16c - 16-Pin Connector
T20a - 20-Pin Connector
TML - Coupling Point in Engine/Motor Compartment, Left
TMOM - Coupling Point on Engine, Top Center
B672 - Suspension/Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B676 - Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
* - For Vehicles with Diesel Engine
*2 - For Vehicles with Gasoline Engine
