Mounting Bracket, Removing And Installing: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

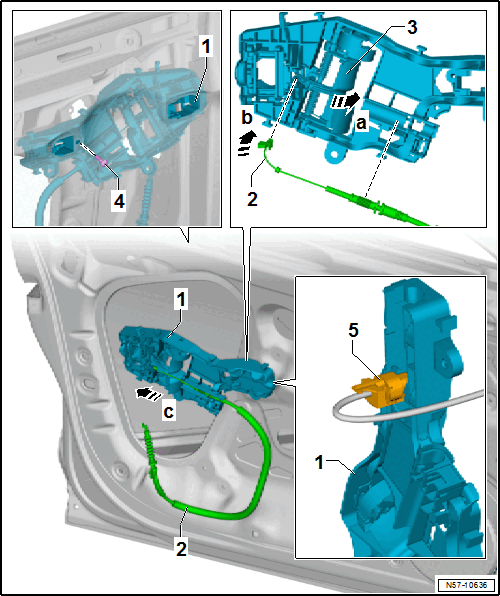

Release Cable, Securing

NOTE:

Pay attention to correct seating of the connector -5- for the keyless access authorization system.

-- For notes and procedures regarding a door handle with the keyless access authorization system. Refer to Access/Start Authorization .

-- Pivot the retainer -3- slightly in direction of -arrow a-.

-- Push the release cable pin -2- into the mount in direction of -arrow b-.

-- Guide the mounting bracket -1- into the door in direction of -arrow c-.

-- Tighten the bolt -4-.

Further installation is the reverse order of removal.
