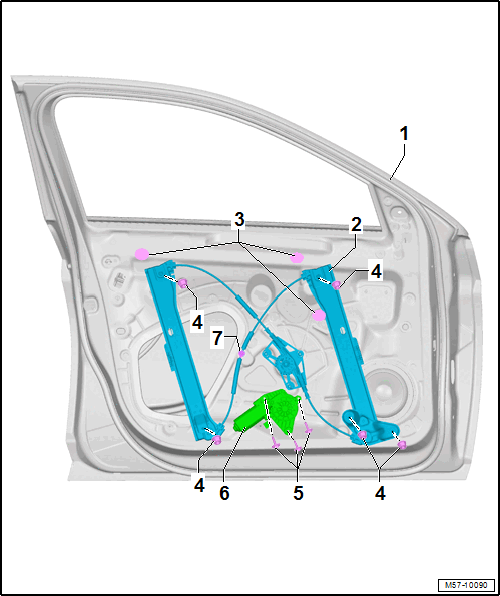

Overview - Window Regulator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Door
Window Regulator
- Removing and Installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Sticker
- 40 mm diameter
- Use commercially available duct tape if needed
Nut
- 8 Nm
- Quantity: 5
Bolt
- 3 Nm
- Quantity: 3
Driver Window Regulator Motor -V147- / Front Passenger Window Regulator Motor -V148-
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Clip
