CONNECTION CONNECTORS FOR EXTERNAL MULTIMEDIA DEVICES, USB Connection Baseplate -R193-

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

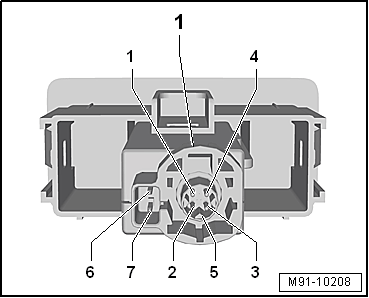

GWWM91-10208Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

7-Pin Connector -1-

  1. USB2 Data+
  2. USB1 Data-
  3. USB2 Data-
  4. USB1 Data+
  5. Ground Shielding
  6. USB +5V
  7. USB Ground
