OVERVIEW - CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES, USB Connection Baseplate -R193-

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

The USB Connection Baseplate -R193- is connected on the Information Electronics Control Module 1 -J794-.

Different external audio sources can be connected to the connection for external multimedia devices:

iPod^®
MP3 player
USB Stick

Suitable adapter cables are needed. Refer to the appropriate information..

Fault finding is performed via the Guided Fault Finding on the Vehicle Diagnostic Tester.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

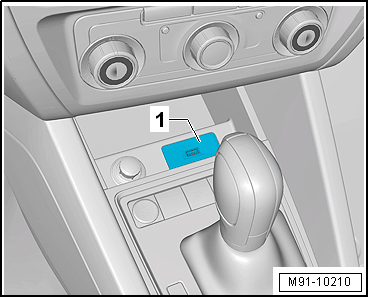

The USB Connection Baseplate -R193- -1- is located inside the front center console storage compartment.
