ATF Cooler, Removing And Installing: Removing

-- Remove the transmission. Refer to TRANSMISSION, REMOVING .

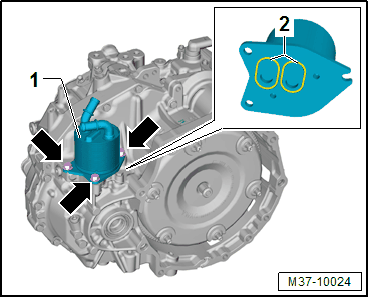

-- Remove the bolts -arrows-.

GWWM37-10024

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the ATF cooler -1-.

NOTE:

Replace the O-rings -2-.
