Transmission Identification

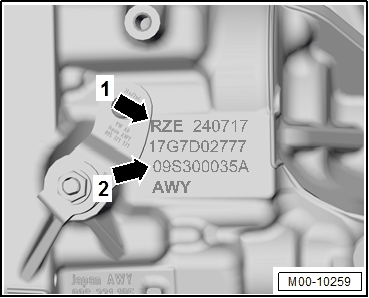

Transmission Code -arrow- and Production Date -1-
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-arrow 1- = code
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-arrow 2- = "8-Speed Automatic Transmission 09S"
Example:
| RZE |
24 |
07 |
17 |
| I |
I |
I |
I |
| Codes |
Day |
Month |
Production year |
The transmission code is also listed on the vehicle data label.
