Component Location Overview - Navigation System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

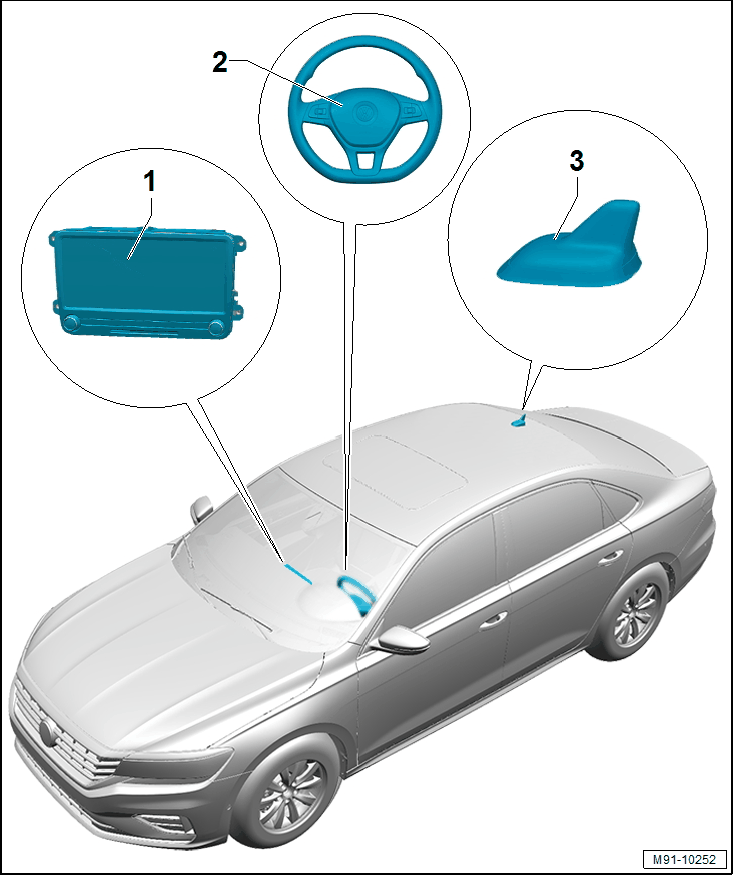

1. Information Electronics Control Module 1 -J794-
   • Inside the center of the instrument panel
   • Together with Front Information Display Control Head -J685-
   • Removing and installing. Refer to NAVIGATION SYSTEM CONTROL MODULE, REMOVING AND INSTALLING .
   • Connector Assignment. Refer to the appropriate Wiring Diagram.
2. Multifunction Steering Wheel
   • Right Multifunction Buttons on Steering Wheel -E441-
   • Removing and installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
   • Left Multifunction Buttons on Steering Wheel -E440-
   • Removing and installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
3. GPS Antenna -R50-
   • Component of the Roof Antenna -RX5-
   • Removing and installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
