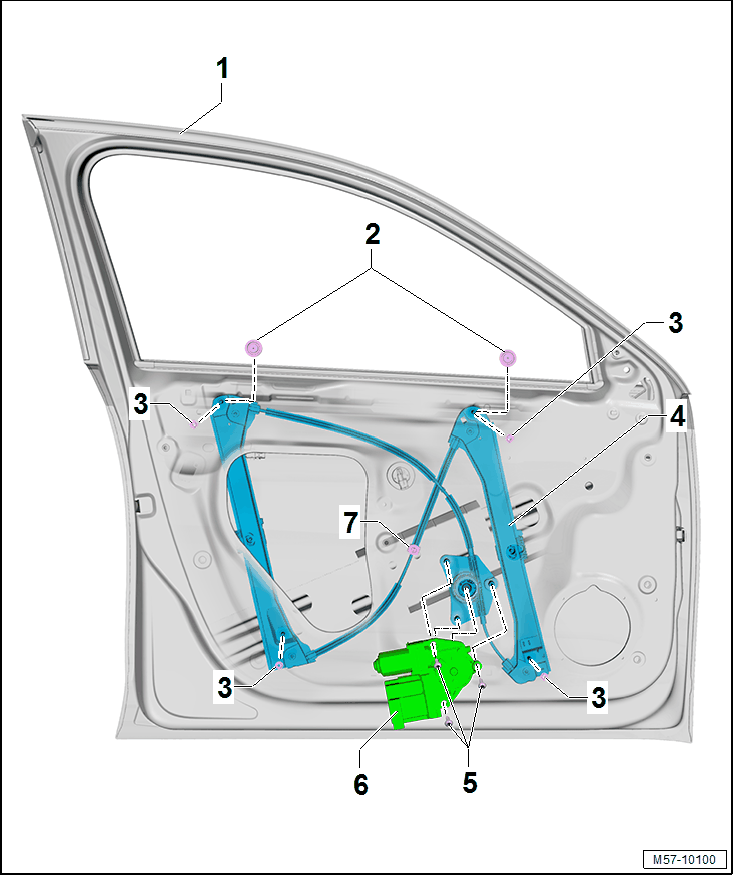

Overview - Window Regulator
NOTE:
The illustration shows the left side. The right side is done the same.
- Front Door
- Sticker
- 40 mm diameter
- Use commercially available duct tape if needed
- Nut
- 8 Nm
- Quantity: 4
- Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
- Screw
- 3 Nm
- Quantity: 3
- Driver Window Regulator Motor -V147- / Front Passenger Window Regulator Motor -V148-
- Removing and installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Clip
