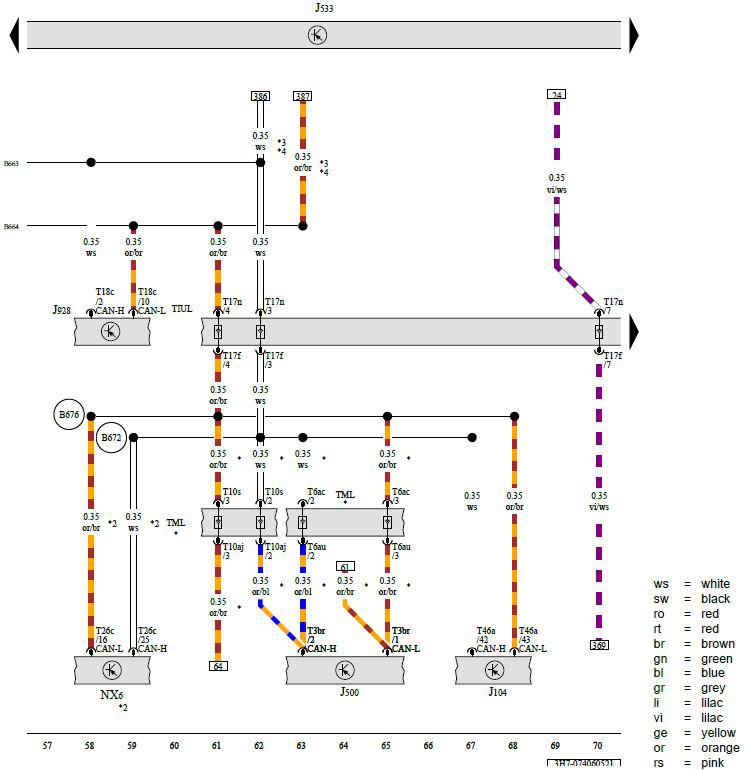

ABS Control Module, Power Steering Control Module, Data Bus on Board Diagnostic Interface, Peripheral Camera Control Module, Brake Booster
J104 - ABS Control Module
J500 - Power Steering Control Module
J533 - Data Bus on Board Diagnostic Interface
J928 - Peripheral Camera Control Module
NX6 - Brake Booster
T3br - 3-Pin Connector, Black
T6ac - 6-Pin Connector, Black
T6au - 6-Pin Connector, Black
T10aj - 10-Pin Connector, Black
T10s - 10-Pin Connector, Black
T17f - 17-Pin Connector, Brown
T17n - 17-Pin Connector, Brown
T18c - 18-Pin Connector, Black
T26c - 26-Pin Connector, Black
T46a - 46-Pin Connector, Black
TIUL - Coupling Point in Interior, Bottom Left
TML - Coupling Point in Engine/Motor Compartment, Left
B663 - Suspension Sensor CAN Bus High Connection (in Main Wiring Harness)
B664 - Suspension Sensor CAN Bus Low Connection (in Main Wiring Harness)
B672 - Suspension/Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B676 - Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
* - Depending on Equipment
*2 - For Vehicles with Electromechanical Brake Booster
*3 - For Vehicles with Top Sport Equipment
*4 - From June 2021
