Special Tools

Special tools and workshop equipment required

• Engine and Gearbox Jack: VAS6931
• Socket - Sw15: V/175
• Transmission Support: 3282
• Drive Axle Wedge Tool: T10161
• Torque Wrench 1332 40-200Nm: VAG1332
• Transmission Support - Mounting Plate 36: 3282/36

Special tools and workshop equipment required

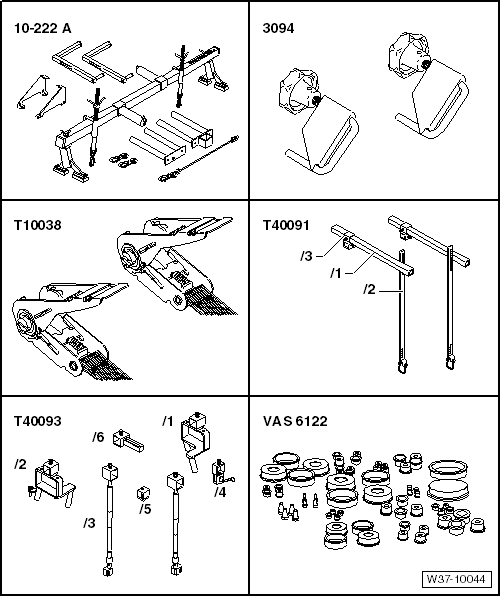

• Engine Support Bridge: 10-222A
• Hose Clamps - Up To 25mm: 3094  and Hose Clamps - Up To 40mm: 3093
• Tensioning Strap: T10038
• Engine Support - Basic Set: T40091
• Engine Support - Supplement Kit: T40093AA
• Engine Bung Set: VAS6122

Special tools and workshop equipment required

• Engine Support Bridge: 10-222A
• Engine Support Bridge - Spindle: 10-222A/11
• Engine Support Bridge - Engine Support 28: 10-222A/28
• Engine Support Bridge - Engine Support 31: 10-222A/31
• Engine Support - Basic Set - Rail with Holes: T40091/2  from the Engine Support - Basic Set: T40091
• Engine Support - Supplement Kit - Mount: T40093A/5  from the Engine Support - Supplement Kit: T40093A
• Engine Support Bridge - Engine Support 28-2: 10-222A/28-2  quantity: 2
• Engine Support - Basic Set - Square Pipe: T40091/1  (quantity 2) from the Engine Support - Basic Set : T40091
• Engine Support - Basic Set - Movable Joint: T40091/3  (quantity 2) from the Engine Support - Basic Set : T40091

Special tools and workshop equipment required

• Torque Wrench 1331 5-50Nm: VAG1331
• Used Oil Collection and Extraction Unit: SMN372500
• Vehicle Diagnostic Tester
• Shop Crane - Drip Tray: VAS6208
• Oil Filler: VAS6262A
• Oil Filler - Adapter 2: VAS6262/2
• Also for some oil containers Oil Filler - Adapter 6: VAS6262/6

Special tools and workshop equipment required

• Crankshaft Adapter: T03003
  Fig 5: Crankshaft Adapter T03003

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Gauge - Multi Function Switch: T10173
  Fig 6: Adjustment Fixture T10173

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Seal Installer - Selector Shaft Oil Seal: T10174
  Fig 7: Identifying Thrust Piece T10174

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Insert Tool 18 mm: T10179

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Engine and Gearbox Bracket VAS6095A: VAS6095A
  Fig 8: Engine And Transmission Holder VAS 6095

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane: VAS6100
  Fig 9: Identifying Shop Crane VAS 6100

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Holding Fixture: VW313
  Fig 10: Holding Fixture VW 313

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Holding Fixture: VW540
  Fig 11: Engine/Transmission Support VW 540

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Support Bridge - Special Hook (2 pc.): 10-222A/20
  Fig 12: Identifying Adapter 10 - 222 A/820

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clamps - Up To 25mm: 3094  and Hose Clamps - Up To 40mm: 3093
  Fig 13: 3094 Hose Clamps

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Not illustrated: Spring Type Clip Pliers
