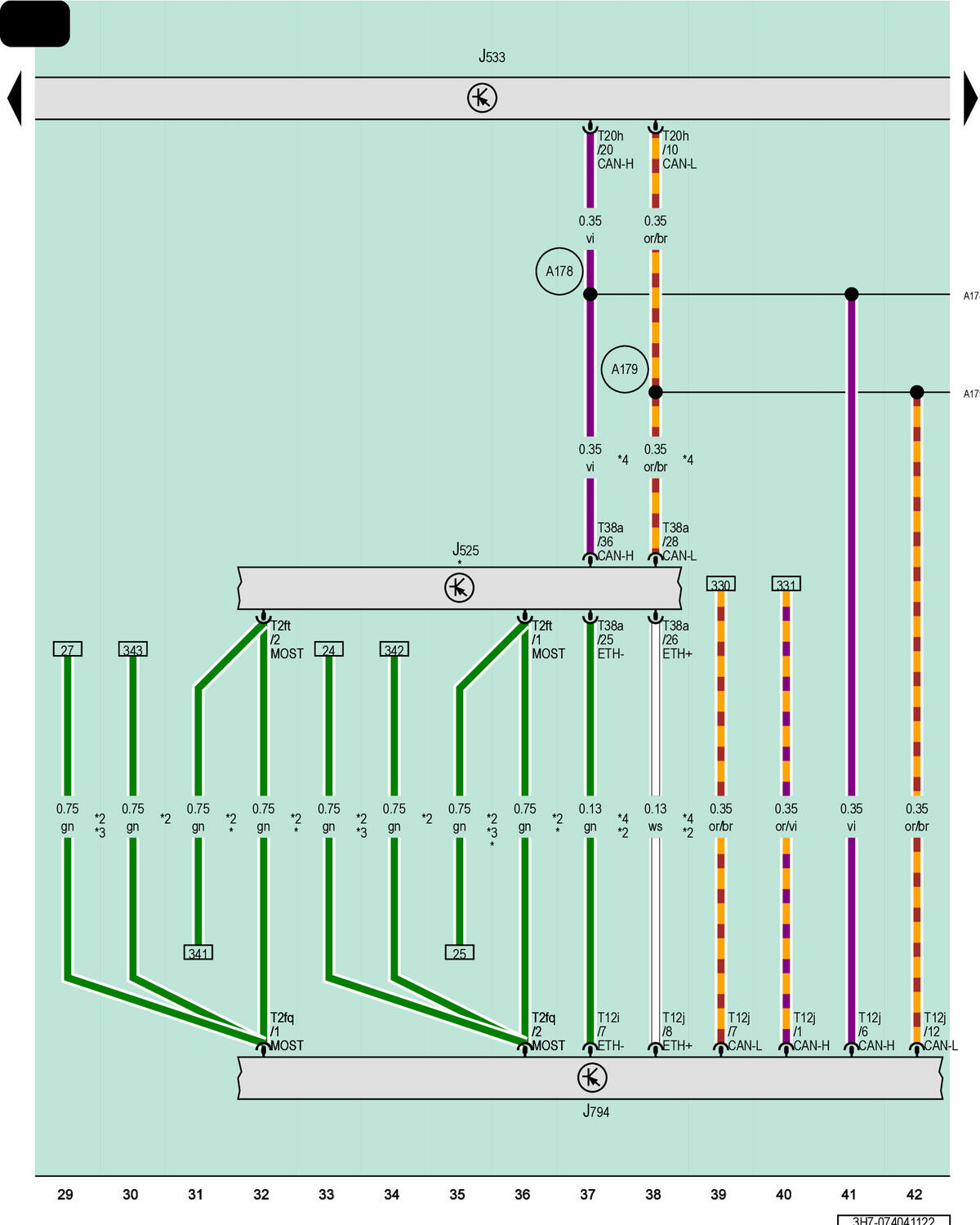

Digital Sound System Control Module, Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1
J525
Digital Sound System Control Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
T2fq
2-Pin Connector, Black
T2ft
2-Pin Connector, Black
T12i
12-Pin Connector, Green
T12j
12-Pin Connector, Gray
T20h
20-Pin Connector, Red
T38a
38-Pin Connector, Black
A178
Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179
Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
*
For Vehicles with Sound System
*2
Depending on Equipment
*3
For Vehicles with TV Tuner
*4
From July 2019
