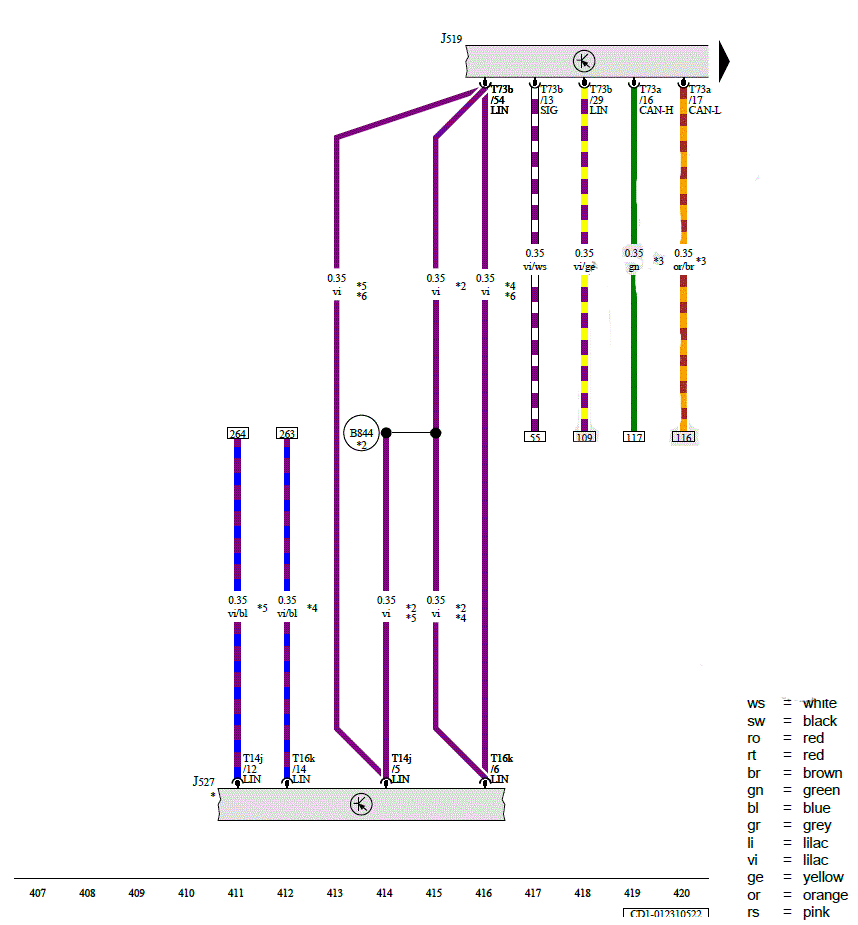

Vehicle Electrical System Control Module, Steering Column Electronics Control Module
J519
Vehicle Electrical System Control Module
J527
Steering Column Electronics Control Module
T14j
14-Pin Connector, Black
T16k
16-Pin Connector, Black
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
B844
LIN Bus Connection 10 (in Main Wiring Harness)
*
Refer to Applicable Steering Column Electronics Wiring Diagram
*2
From November 2020
*3
For Vehicles with Trailer Socket
*4
For Vehicles Without Heated Steering Wheel
*5
For Vehicles with Heated Steering Wheel
*6
Through November 2020
