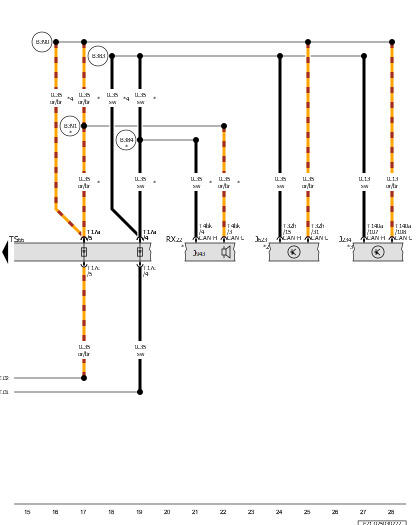

Airbag Control Module, Engine/Motor Control Module, Engine Sound Generator Module 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

J623

Engine/Motor Control Module

J943

Engine Sound Generator Control Module

RX22

Engine Sound Generator Module 2

T4bk

4-Pin Connector, Black

T17a

17-Pin Connector, Black

T17c

17-Pin Connector, Black

T32h

32-Pin Connector, Blue

T140a

140-Pin Connector, Yellow

TS66

Rear Suspension Coupling Point

B383

Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)

B384

Powertrain CAN Bus High Connection 2 (in Main Wiring Harness)

B390

Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)

B391

Powertrain CAN Bus Low Connection 2 (in Main Wiring Harness)

E131

CAN Bus Drive High Connection 5 (in Engine Wiring Harness)

E132

CAN Bus Drive Low Connection 5 (in Engine Wiring Harness)

*

For USA Only

*2

Refer to Applicable Electric Drive System, Engine/Motor Control Module Wiring Diagram

*3

Refer to Applicable Airbag Wiring Diagram

*4

Not for USA
