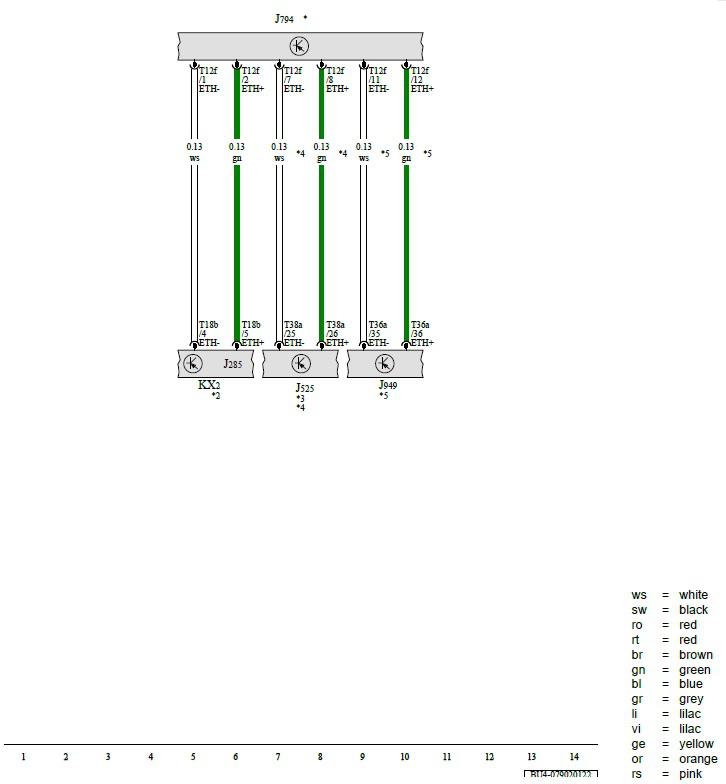

Digital Sound System Control Module, Information Electronics Control Module 1, Control Module for Emergency Call Module and Communication Unit, Instrument Cluster
J285 - Instrument Cluster Control Module
J525 - Digital Sound System Control Module
J794 - Information Electronics Control Module 1
J949 - Control Module for Emergency Call Module and Communication Unit
KX2 - Instrument Cluster
T12f - 12-Pin Connector, Green
T18b - 18-Pin Connector, Black
T36a - 36-Pin Connector, Black
T38a - 38-Pin Connector, Black
* - Refer to the Applicable Multimedia System Wiring Diagram
*2 - Refer to Applicable Wiring Diagram for Instrument Cluster
*3 - Refer to Applicable Sound System Wiring Diagram
*4 - For Vehicles with Sound System
*5 - For Vehicles with Emergency Call Module
