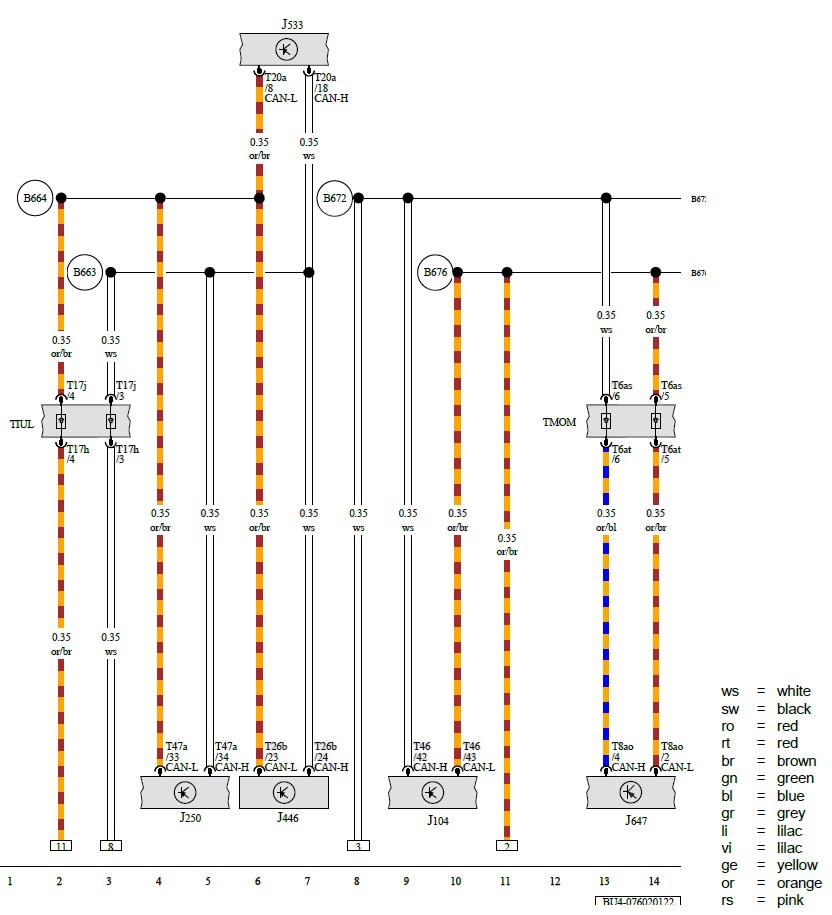

ABS Control Module, Electronic Damping Control Module, Parking Aid Control Module, Data Bus on Board Diagnostic Interface, Differential Locks Control Module
J104 - ABS Control Module
J250 - Electronic Damping Control Module
J446 - Parking Aid Control Module
J533 - Data Bus on Board Diagnostic Interface
J647 - Differential Locks Control Module
T6as - 6-Pin Connector, Gray
T6at - 6-Pin Connector, Gray
T8ao - 8-Pin Connector, Black
T17h - 17-Pin Connector, Brown
T17j - 17-Pin Connector, Brown
T20a - 20-Pin Connector, Black
T26b - 26-Pin Connector, Black
T46 - 46-Pin Connector, Black
T47a - 47-Pin Connector, Black
TIUL - Coupling Point in Interior, Bottom Left
TMOM - Coupling Point on Engine, Top Center
B663 - Suspension Sensor CAN Bus High Connection (in Main Wiring Harness)
B664 - Suspension Sensor CAN Bus Low Connection (in Main Wiring Harness)
B672 - Suspension/Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B676 - Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
