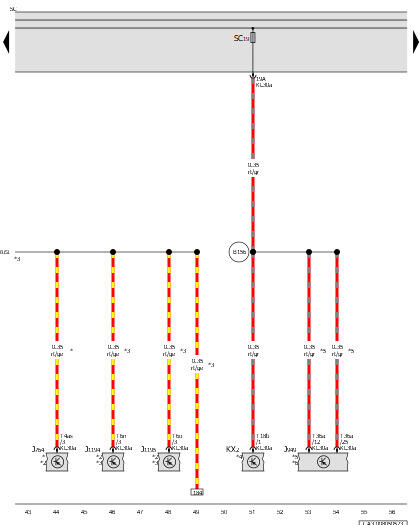

Electronic Steering Column Lock Control Module, Control Module For Emergency Call Module And Communication Unit, Burglary Protection Control Module 4, Burglary Protection Control Module 5, Instrument Cluster, Fuse Panel C
J764
Electronic Steering Column Lock Control Module
J949
Control Module for Emergency Call Module and Communication Unit
J1194
Burglary Protection Control Module 4
J1195
Burglary Protection Control Module 5
KX2
Instrument Cluster
SC
Fuse Panel C
SC19
Fuse 19 (On Fuse Panel C)
T4as
4-Pin Connector, Black
T6n
6-Pin Connector, Black
T6o
6-Pin Connector, Black
T18b
18-Pin Connector, Black
T36a
36-Pin Connector, Black
B151
Positive Connection 3 (30a) (in Interior Wiring Harness)
B156
Positive Connection 30a (in Interior Wiring Harness)
*
For Vehicles with Power Steering Column Adjustment
*2
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*3
Depending on Equipment
*4
Refer to Applicable Wiring Diagram for Instrument Cluster
*5
For Vehicles with Emergency Call Module
*6
Refer to Applicable Emergency Call Module Wiring Diagram
