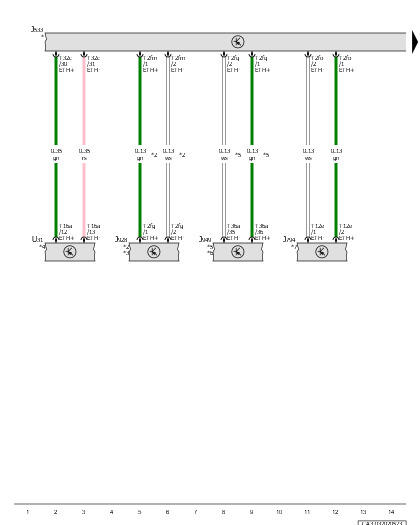

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Peripheral Camera Control Module, Control Module For Emergency Call Module And Communication Unit, Diagnostic Connection
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
J928
Peripheral Camera Control Module
J949
Control Module for Emergency Call Module and Communication Unit
T2fg
2-Pin Connector, White
T2fm
2-Pin Connector, White
T2fo
2-Pin Connector, White
T2fq
2-Pin Connector, White
T12e
12-Pin Connector, Green
T16a
16-Pin Connector, Black
T32c
32-Pin Connector, Black
T36a
36-Pin Connector, Black
U31
Diagnostic Connection
*
Refer to Applicable Wiring Diagram for Data Bus Networking
*2
For Vehicles with Peripheral Camera
*3
Refer to Applicable Peripheral Camera Wiring Diagram
*4
Refer to Applicable Wiring Diagram for Data Bus on Board Diagnostic Interface
*5
For Vehicles with Emergency Call Module
*6
Refer to Applicable Emergency Call Module Wiring Diagram
*7
Refer to the Applicable Multimedia System Wiring Diagram
