Control Module For Adaptive Cruise Control J428, Removing And Installing: Removing

If the control module is replaced, the test plan to replace the control module must be performed.

-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation

-- Remove the front emblem. Refer to FRONT EMBLEM, REMOVING AND INSTALLING .

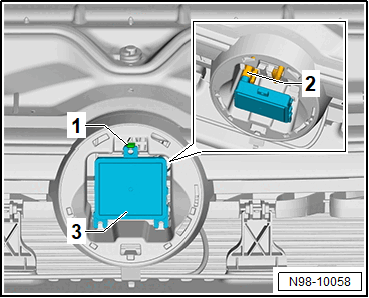

-- Release the hook -1- and remove the control module -3-, until the connector is accessible.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

-- Clean the connector -2- and the control module -3- and dry.
