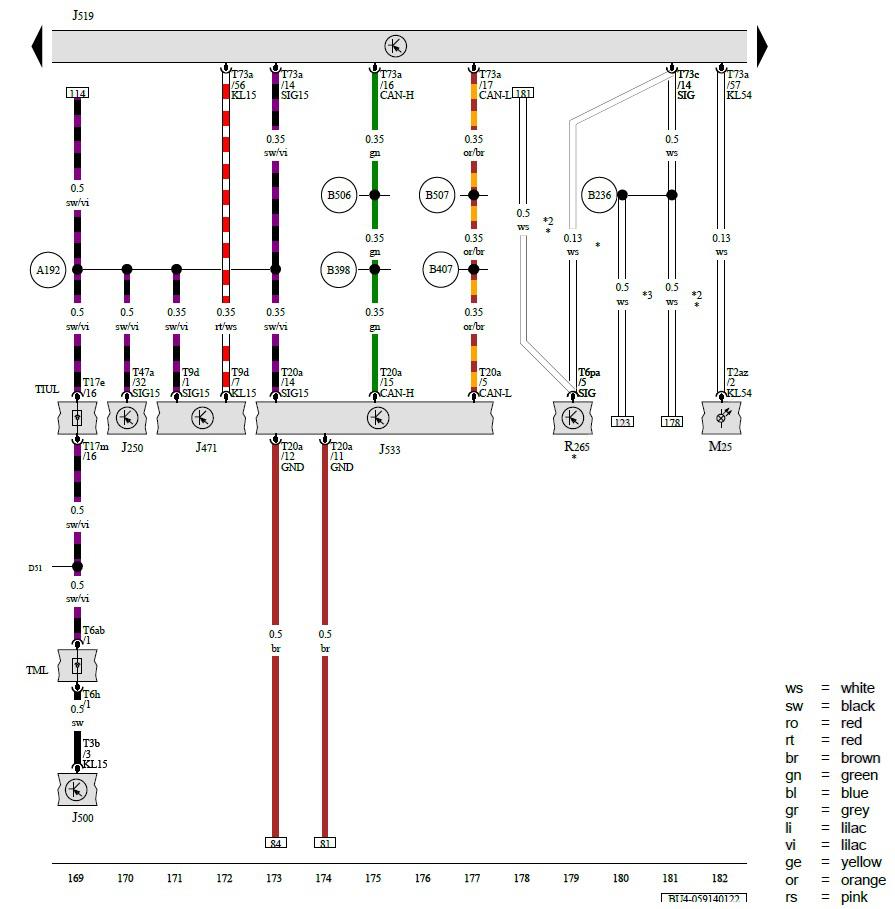

Electronic Damping Control Module, Remote Start System Relay, Power Steering Control Module, Vehicle Electrical System Control Module, Data Bus on Board Diagnostic Interface, High-Mounted Brake Lamp Bulb, Storage Compartment with Cell Phone Interface
J250 - Electronic Damping Control Module
J471 - Remote Start System Relay
J500 - Power Steering Control Module
J519 - Vehicle Electrical System Control Module
J533 - Data Bus on Board Diagnostic Interface
M25 - High-Mounted Brake Lamp Bulb
R265 - Storage Compartment with Cell Phone Interface
T2az - 2-Pin Connector, Black
T3b - 3-Pin Connector, Black
T6ab - 6-Pin Connector, Black
T6h - 6-Pin Connector, Black
T6pa - 6-Pin Connector, Black
T9d - 9-Pin Connector, Gray
T17e - 17-Pin Connector, Blue
T17m - 17-Pin Connector, Blue
T20a - 20-Pin Connector, Black
T47a - 47-Pin Connector, Black
T73a - 73-Pin Connector, Black
T73c - 73-Pin Connector, Black
TIUL - Coupling Point in Interior, Bottom Left
TML - Coupling Point in Engine/Motor Compartment, Left
A192 - Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)
B236 - Positive Connection 6 (30a) (in Interior Wiring Harness)
B398 - Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B506 - Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507 - Comfort CAN Bus Low Connection (in Interior Wiring Harness)
D51 - Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)
* - For Vehicles with Telephone Charging Station
*2 - For Vehicles with Lock and Start System "Keyless Access"
*3 - For Vehicles with Access/Start Authorization System
