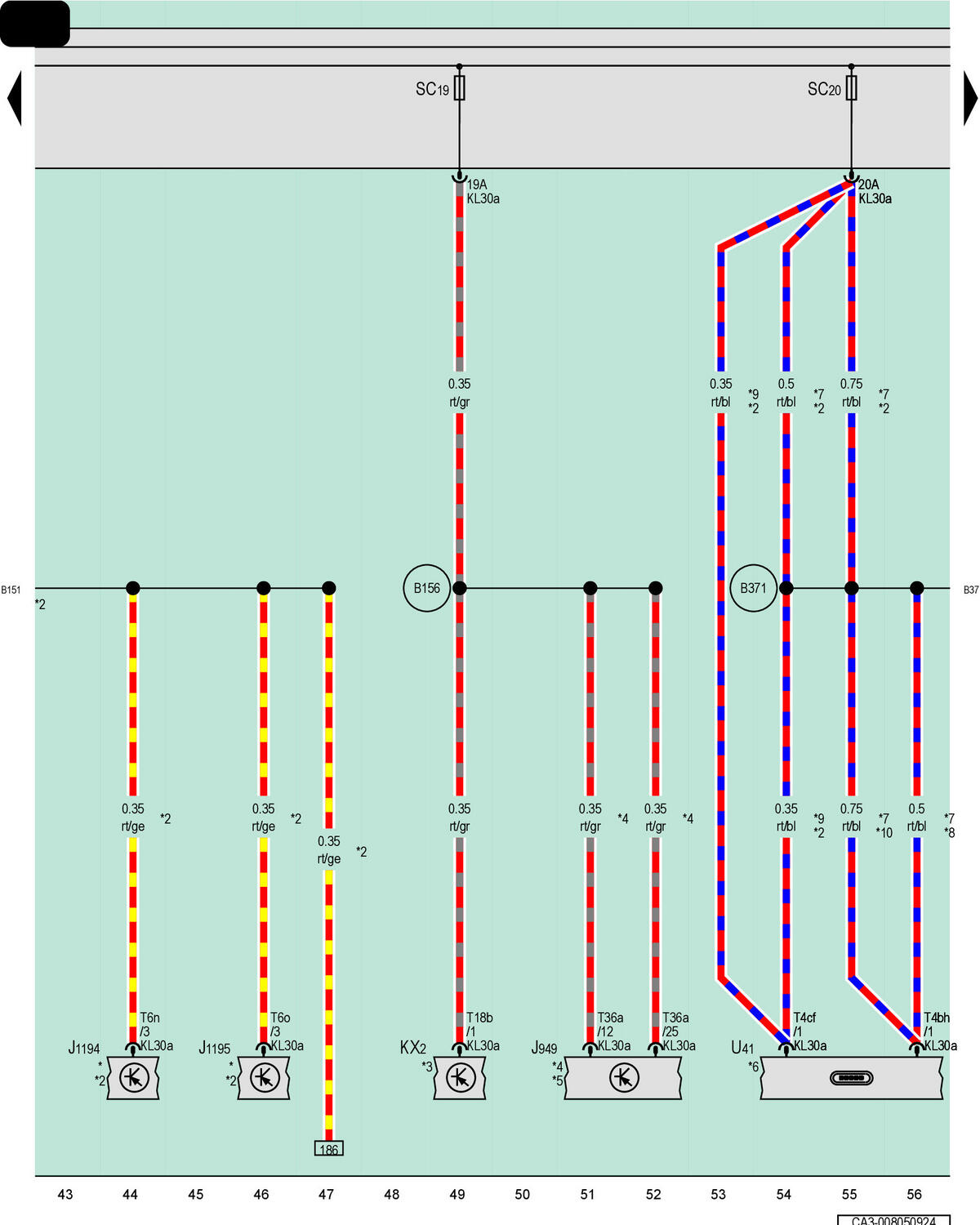

Control Module For Emergency Call Module And Communication Unit, Burglary Protection Control Module 4, Burglary Protection Control Module 5, Instrument Cluster, Fuse Panel C, USB Connection 1
J949
Control Module for Emergency Call Module and Communication Unit
J1194
Burglary Protection Control Module 4
J1195
Burglary Protection Control Module 5
KX2
Instrument Cluster
SC
Fuse Panel C
SC19
Fuse 19 (On Fuse Panel C)
SC20
Fuse 20 (On Fuse Panel C)
T4bh
4-Pin Connector, Blue
T4cf
4-Pin Connector, Red
T6n
6-Pin Connector, Black
T6o
6-Pin Connector, Black
T18b
18-Pin Connector, Black
T36a
36-Pin Connector, Black
U41
USB Connection 1
B151
Positive Connection 3 (30a) (in Interior Wiring Harness)
B156
Positive Connection 30a (in Interior Wiring Harness)
B371
Antenna Connection 1 (in Main Wiring Harness)
*
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*2
Depending on Equipment
*3
Refer to Applicable Wiring Diagram for Instrument Cluster
*4
For Vehicles with Emergency Call Module
*5
Refer to Applicable Emergency Call Module Wiring Diagram
*6
Refer to Applicable Wiring Diagram for USB Connection for Data Transfer
*7
For Vehicles with USB Connection for Increased Charging Capacity
*8
Omitted as a Running Change
*9
Not for Vehicles with USB Connection for Increased Charging Capacity
*10
Running Change
