Rear Axle Toe, Adjusting: Notes

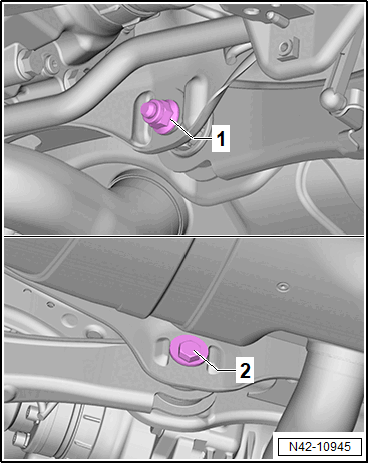

-- Loosen the nut -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the eccentric screw -2- until the specified value is reached.

NOTE:

The maximum adjustment range is 90° to left or right of center position.

-- Tighten the nut -1-.

-- After the nut -1- is tightened, check the toe value once more. Refer to AXLE ALIGNMENT SPECIFIED VALUES .
