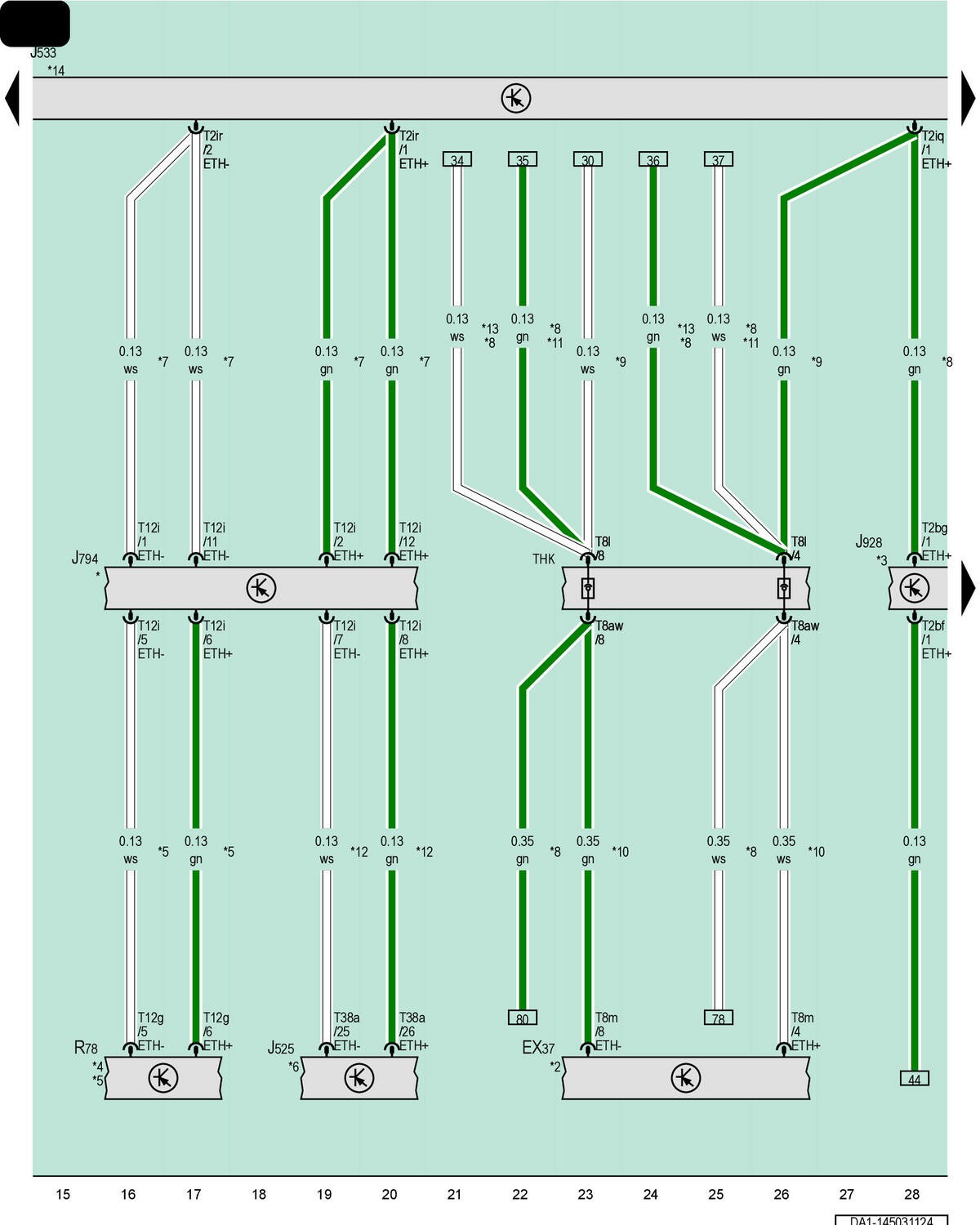

Rear Lid Handle, Digital Sound System Control Module, Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Peripheral Camera Control Module, TV Tuner
EX37
Rear Lid Handle
J525
Digital Sound System Control Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
J928
Peripheral Camera Control Module
R78
TV Tuner
T2bf
2-Pin Connector, White
T2bg
2-Pin Connector, White
T2iq
2-Pin Connector, White
T2ir
2-Pin Connector, White
T8aw
8-Pin Connector, Black
T8l
8-Pin Connector, Black
T8m
8-Pin Connector, Black
T12g
12-Pin Connector, Black
T12i
12-Pin Connector, Green
T38a
38-Pin Connector, Black
THK
Rear Lid Coupling Point
*
Refer to the Applicable Multimedia System Wiring Diagram
*2
Refer to Applicable Power Rear Lid Wiring Diagram
*3
Refer to Applicable Peripheral Camera Wiring Diagram
*4
Refer to the Applicable TV Tuner Wiring Diagram
*5
For Vehicles with Japan Equipment
*6
Refer to Applicable Sound System Wiring Diagram
*7
Depending on Equipment
*8
For Vehicles with Peripheral Camera
*9
For Vehicles with Rearview Camera System
*10
Different Wire Color Possible
*11
Through November 2024
*12
The Color of the Wires Depends on Vehicle Equipment
*13
From November 2024
*14
Refer to Applicable Wiring Diagram for Data Bus Networking
