Left/Right Peripheral Camera -R244- / -R245-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN CENTER SECTION OF VEHICLE .
-- Remove the Driver and Front Passenger Exterior Rearview Mirror Turn Signal Bulb Driver Exterior Rearview Mirror Turn Signal Bulb -L131- /Front Passenger Exterior Rearview Mirror Turn Signal Bulb -L132-. Refer to DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR TURN SIGNAL BULB -L131- / -L132-, REMOVING AND INSTALLING .

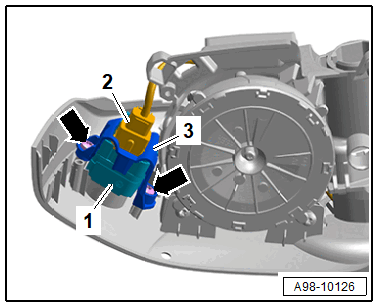

-- Release and disconnect the connector -2-.
-- Remove the bolts -arrows-.
-- Remove the frame -3- together with the peripheral camera -1- upward from the exterior rearview mirror.
-- Remove the frame from the peripheral camera.
