Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN REAR SECTION OF VEHICLE .
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, SEDAN .

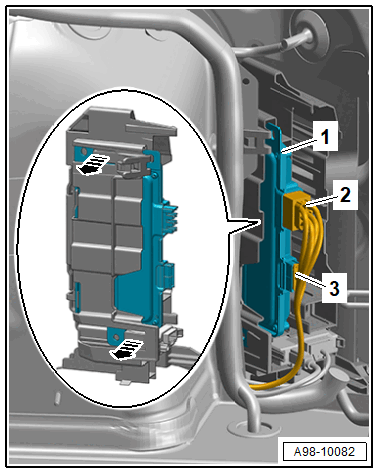

-- Disconnect the connectors -2 and 3-.
-- Release the retainers -arrows-.
-- Remove the control module -1- from the mount.
