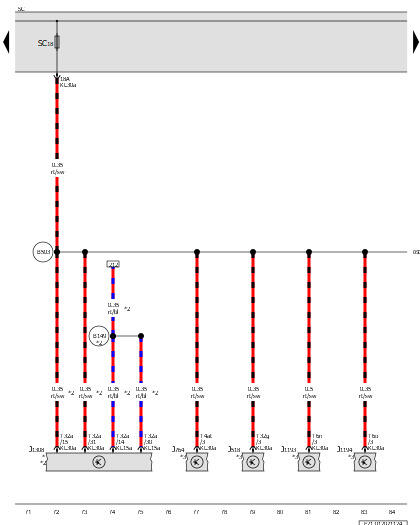

Access/Start Authorization Control Module, Electronic Steering Column Lock Control Module, Burglary Protection Control Module 3, Burglary Protection Control Module 4, Control Module For Mobile Communication - Controlled Access/Start Authorization System, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J518

Access/Start Authorization Control Module

J764

Electronic Steering Column Lock Control Module

J1193

Burglary Protection Control Module 3

J1194

Burglary Protection Control Module 4

J1308

Control Module for Mobile Communication - Controlled Access/Start Authorization System

SC

Fuse Panel C

SC18

Fuse 18 (On Fuse Panel C)

T4at

4-Pin Connector, Black

T6n

6-Pin Connector, Black

T6o

6-Pin Connector, Black

T32a

32-Pin Connector, Black

T32g

32-Pin Connector, Gray

B149

Positive Connection 2 (15a) (in Interior Wiring Harness)

B503

Positive Connection 7 (30a) (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram

*2

Through September 2023

*3

Refer to the Applicable Access/Start Authorization System Wiring Diagram
